VCSEL Communications
High Data Rate VCSELs for AI Data Center
Lasers for AI applications and data centers require a high bandwidth and excellent single mode performance. Vertilas has developed high data rate lasers by optimizing the InP VCSEL design with a bandwidth up to 22 GHz, high max. optical power of 4 mW and a side mode suppression ratio (SMSR) of 40 dB. Single mode VCSELs for 1310 nm, 1490 nm and 1550 nm have been demonstrated with a modulation performance of 10 to 50 Gb/s NRZ, and 106 Gb/s PAM4.
Key Features
-
Ultra low power dissipation for pJ/bit photonics solutions
-
High performance up to 106 Gb/s PAM4
-
Excellent single mode performance
-
Circular Gaussian optical beam parameters
InP VCSEL
Our unique long wavelength VCSEL concept is based on InP material, enabling to manufacture communications lasers for 1310 nm, 1490 nm and 1550 nm. It features a buried tunnel junction for the current confinement, an epitaxial top DBR, a multi quantum well active area and dielectric bottom mirror encapsulated by a gold substrate. This very efficient thermal design enables ultra high performance and long lifetime reliability.
Performance
Application examps, from 1 Gbs to 106 Gb/s
106 Gb/s 1310 nm PAM4
1490nm 1G 4ch array Eye 75°
10Gbps 4ch 1310nm VCSEL array, 50°C
1310nm 25 Gbps Eye Diagram 40°C, 7,5mA
Spectrum

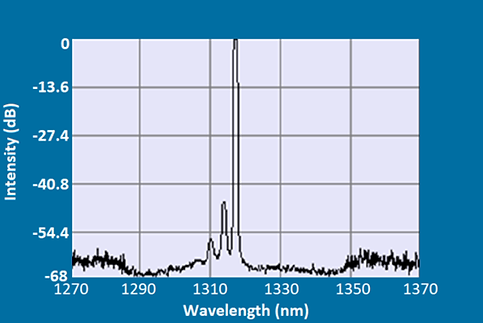

The optical power and optical spectrum can be well defined by the etched area of the buried tunnel junction. The figure below show the spectrum of a single mode 1310 nm VCSEL.
Packages
Please contact us for package options available
-
Bare chip
-
Bare chip on submount
-
TO-CAN
-
TOSA
